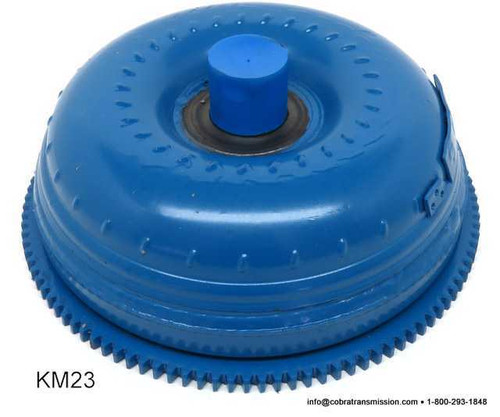

F4A41/51, F5A51, F4A4B, F4A5A, A5GF1, A5HF1 Automatic Transmission Torque Converter
Diameter:10.875"
Bolt Circle to Bolt Circle: 8.750"
Pilot Diameter: 1.335"
Splines: 20
Mount: 4 Pads 10mm x 1.25
Hub: Flats Flanged
Stall: High
Codes: 6d, P9
Notes: 110 Tooth Ring Gear
Some Sebring (3.0L) (2002)
Some Sebring (3.0L) (2005)
Some Stratus (3.0L) (2001-2005)
Some Santa Fe (2.7L) (2001-2009)
Some Eclipse (3.0L) (2002-2005)
Some Galant (3.0L) (1999-2003)
F4A41/51, F5A51, F4A4B, F4A5A, A5GF1, A5HF1 Automatic Transmission Torque Converter Diameter:10.350" Bolt Circle to Bolt Circle: 8.750" Pilot Diameter: 1.335" Length: 0.865 Splines: 20 Mount:...
Borg Warner BW-T35, BW T35TB, T37TB Automatic Transmission Torque Converter 6 Pad, Ring Gear & Shroud (22Spline) 62-65 AMC 6 Cyl (Code: HH) Type: Non Lock Up Hub: Ears Diameter: 12" Input...
42RLE Automatic Transmission Torque ConverterDiameter: 10.750"Bolt Circle To Bolt Circle: 9.125"Mount: 4 Pads 90° , 10mm x 1.5 Hub: Milled FlatsPilot: Diameter: 1.335"Splines: 22Stall:...
A540, A541 Automatic Transmission Lock-Up Torque Converter Diameter: 11.150" Bolt Circle To Bolt Circle: 9.60" Mount: 6 Pads 9mm x 1.25 Hub: Slotted Pilot: Diameter 1.257" Length: 0...
A500, 40RH, 42RH, 42RE, 44RE Automatic Transmission Lock-Up Torque Converter. Diameter: 10" Bolt Circle: 8.750" Mount: 4 Pads Offset 10mm x 1.5 Hub: Milled Flats Pilot: 1.335" Spline: 22 Stall:...
Chrysler A518, A618, 46RE, 46RH, 47RE, 47RH, 48RE Automatic Transmission Non-Lock Up Torque Converter Diameter: 11" Bolt Circle To Bolt Circle: 10" Mount: 4 Pads, Thin, 5/16 x 24 Hub:...
Chrysler A604, 40TE, 41TE Automatic Transmission Lock Up Torque Converter Diameter: 10" Bolt Circle to Circle: 8.750" Mount: 4 Pads, Offset, 10mm x 1.5 Hub: Milled Flats Pilot: 1...
IN ORDER TO BUY THIS TORQUE A CORE IS REQUIRED ZF6HP26 Lock-Up Torque Converter Diameter: 11.280" Bolt Circle To Bolt Circle: 10.50" Mount: Mount Plate 4 Captive Nuts 10mm x 1.5 Hub: Slotted...
Toyota A55, A130, A140, A240, A540 Automatic Transmission Torque Converter 11.375", 9" Bolt Circle 88-Up Camry V6, Lexus ES250 (Blue Circle around Pilot) Type: Lock Up Hub: Slotted Diameter: 11.375"...
