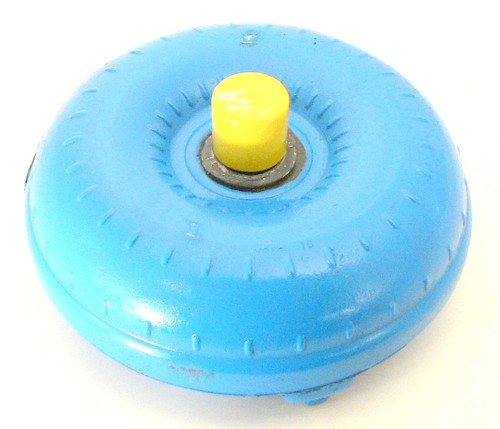

722.6 Automatic Transmission Torque Converter
11.375" Overall Diameter
9" Bolt Pattern
3 Pad Mount w/ 8mm x 1.25 Thread
Slotted Hub
1.375" Pilot Dia.
22 Splines
Medium Stall
Codes: 210-250-0402, 210-250-0502, 210-250-0602, 211-250-0902, 903-250-0002
Notes: Dual Clutch
Compatible with/fits:
2003-2006 Mercedes-Benz Sprinter 2500 2.7L W5A380
2003-2006 Mercedes-Benz Sprinter 3500 2.7L W5A380
Automatic Transmission Remanufactured Torque Converter. 1997-2006 722.62005-2007 722.92005-2006 W5A5802004-2006 W5A330 Type: Dual Lock-Up ClutchDiameter: 11.375"Bolt Circle To Bolt Circle: 9...
W5A380 Automatic Transmission Torque ConverterCompatible with / Fits Mercedes BenzDiameter:11.40"Bolt Circle to Bolt Circle: 10.125"Pilot Diameter: 1.375"Pilot Length: 1.20"Splines: 22Mount: 3 Pads,...
722.4 Automatic Transmission Remanufactured Torque Converter. Type: Non-Lock-UpDiameter: 11.500"Bolt Circle To Bolt Circle: 9.000"Mount: 3 PadsPilot Diameter: 1.375"Turbine Internal Spline Count:...
722.6 Automatic Transmission Remanufactured Torque Converter. Type: Multi Disc Lock-UpDiameter: 12.250"Bolt Circle To Bolt Circle: 9.375"Mount: 3 Pads (2 Holes Each, 8mm x 1.25)Hub: Slotted...
Mazda 722.3 722.5 4-Speed Automatic Transmission Non Lock-Up Torque ConverterDiameter: 11.250"Bolt Circle to Circle: 9"Mount: 3 Pads 8mm x 1.25Hub: SlottedPilot: Diameter 1.375" Length: 1.50"Spline:...
