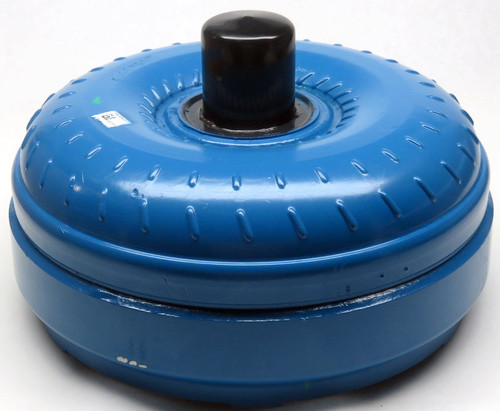

ZF5HP19 Lock-Up Torque Converter
Diameter: 10.80"
Bolt Circle To Bolt Circle: 9.250"
Mount: 3 Nuts 10mm x 1.0
Hub: Slotted / Stepped
Pilot: Diameter 0.629" Length: 1.125"
Splines: 27
Stall: Low
Codes: 156-207, A73, B33, Q56
Notes: Mounting Ring
Some Passat (2.8L) (1998-2006)
Some Passat (4.0L) (2002-2004)
