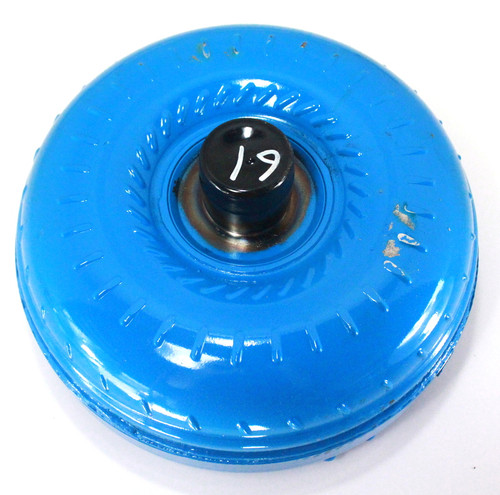

RE5R05A - 5 Speed Automatic Transmission Torque Converter
Diameter: 10.875"
Bolt Circle To Bolt Circle: 9.750"
Mount: 4 Rectangular Pads, 10mm x 1.25
Hub: Flats / Stepped
Pilot Diameter: 0.787"
Splines: 24
Stall: Slight High
Clutch Pack Style
2005-2016 Nissan Frontier 2.4L And 4.0L
2014-2016 NV1500 Van
2012-2016 NV2500 Van
2005-2006 Pathfinder 4.0L
2007 Pathfinder 4.0L (Not All)
2008-2012 Pathfinder 4.0L
2005-2015 Xterra 4.0L
