Torque Converter

F4A-EL, G4A-EL, GF4A-EL Automatic Transmission Lock-Up Torque Converter Diameter: 10" Bolt Circle To Bolt Circle: 9" Mount: 4 Studs; 10mm x 1.0 Hub: Bushing Pilot: Diameter 0.785 Splines: 21 Stall: High Codes: Q20, Green Dot Some Probe (2...

CW6A, DB7B Automatic Transmission Lock-Up Torque Converter Diameter: 10.50" Bolt Circle To Bolt Circle: 9" Mount: 4 Studs; Oval Pads; 10mm x 1.0 Hub: Flats/Step/Flange Pilot: Diameter 0.824" - Length: 0.641 Splines: 18 Stall: Low Codes: FZ1...

F4A-EL, GFA-EL, GF4A-EL Automatic Transmission Lock-Up Torque Converter Diameter: 10" Bolt Circle To Bolt Circle: 9" Mount: 4 Studs; 10mm x 1.0 Hub: Bushing Pilot: Diameter 0.825 Splines: 21 Stall: High Codes: Q20G, 2 Pink Dots Some Escort...

F4A-EL, G4A-EL, GF4A-EL Automatic Transmission Lock-Up Torque Converter Diameter: 10" Bolt Circle To Bolt Circle: 9" Mount: 4 Studs; 10mm x 1.0 Hub: Bushing Pilot: Diameter 0.825" Length: 0.730 Splines: 21 Stall: High Codes: Q25E, Q25F, Q25G,...

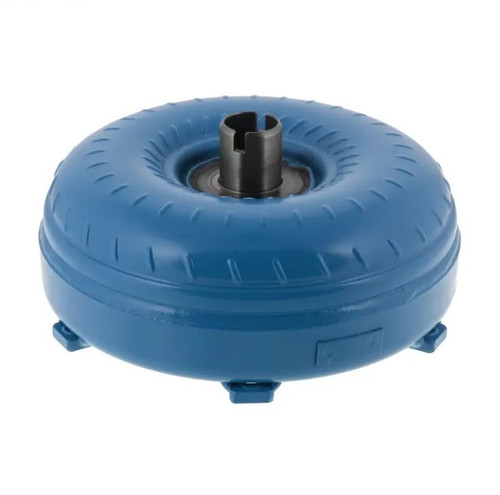

A750E, A760E, A761E, A960E, AB60E Series, AW4 Automatic Transmission Lock-Up Torque Converter Diameter: 11.165" Bolt Circle To Bolt Circle: 9.60" Mount: 6 Pads Squeare 9mm x 1.25 Hub: Slotted Pilot: Diameter 1.257" Length: 0...

A750E, A760E, A761E, A960E, AB60E Series, AW4 Automatic Transmission Lock-Up Torque Converter Diameter: 11.165" Bolt Circle To Bolt Circle: 9.60" Mount: 6 Pads Squeare 9mm x 1.25 Hub: Slotted Pilot: Diameter 1.257" Length: 0.990" Splines:...

A750E, A760E, A761E, A960E, AB60E Series, AW4 Automatic Transmission Lock-Up Torque Converter Diameter: 11.165" Bolt Circle To Bolt Circle: 9.60" Mount: 6 Pads Squeare 9mm x 1.25 Hub: Slotted Pilot: Diameter 1.257" Length: 0...

A540, A541 Automatic Transmission Lock-Up Torque Converter Diameter: 11.150" Bolt Circle To Bolt Circle: 9.60" Mount: 6 Pads 9mm x 1.25 Hub: Slotted Pilot: Diameter 1.257" Length: 0.70" Splines: 26 Stall: Very Low Codes: 04 Ink Stamp,...

A750E, A760E, A761E, A960E, AB60E Automatic Transmission Lock-Up Torque Converter Diameter: 11.850" Bolt Circle To Bolt Circle: 10.60" Mount: 6 Pads Hub: Slotted Pilot: Diameter 1.257" Splines: 20 Stall: Low Codes: 53A040, 320,...

A750E, A760E, A761E, A960E, AB60E Automatic Transmission Lock-Up Torque Converter Diameter: 11.850" Bolt Circle To Bolt Circle: 10.60" Mount: 6 Pads Hub: Slotted Pilot: Diameter 1.257" Splines: 20 Stall: Low Codes: 53A040, 320,...

U140E, U140F, U240E, U241E Automatic Transmission Lock-Up Torque Converter Diameter: 10.40" Bolt Circle To Bolt Circle: 7.875 Mount: 6 Pads Square 9mm x 1.25 Hub: Slotted Pilot: Diameter: 0.825" Length: 1.10" Splines: 26 Codes: 13,...

A340 Series, AW4 Automatic Transmission Lock-Up Torque Converter Diameter: 11.375" Bolt Circle To Bolt Circle: 8.50" Mount: 6 Pads Hub: Slotted / Flanged Pilot: Diameter 0.750" Splines: 26 Stall: Slight Low Codes: 2N, 11B, Blue Circle With...
