Torque Converter

4L80E, 4L85E Automatic Transmission Lock-Up Torque Converter Diameter: 13.750" Bolt Circle To Bolt Circle: 11.50" Mount: 6 Pads; 10mm x 1.5 Hub: Slotted Pilot: Diameter 1.703" Splines: 35 Stall: 1600-1800 Codes: 1SA0, 1SA1, 194, 24202989,...

4L80E, 4L85E Automatic Transmission Lock-Up Torque Converter Diameter: 13.750" Bolt Circle To Bolt Circle: 11.50" Mount: 6 Pads; 10mm x 1.5 Hub: Slotted 2.050 Height Pilot: Diameter 1.703" Splines: 35 Stall: 1800-2000 Codes: 193, 19B1, 1SB1,...

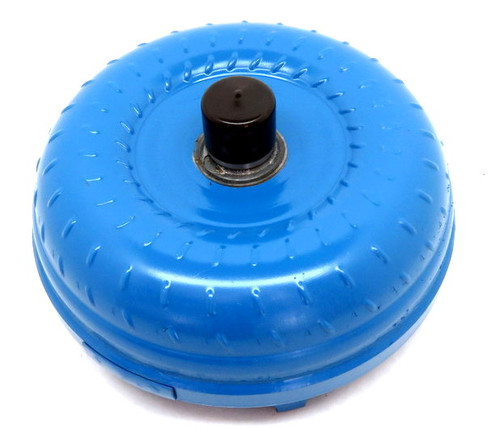

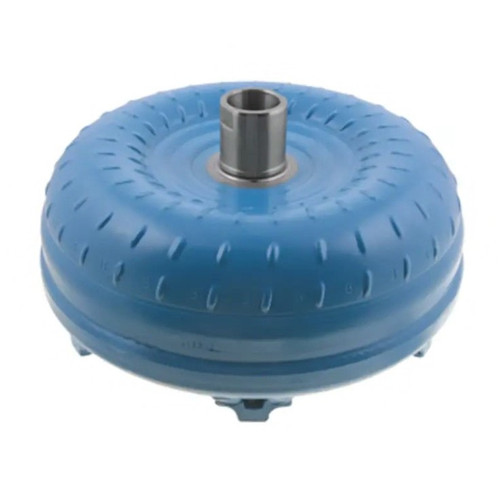

4L80E Automatic Transmission Torque Converter, Lock UpDiameter: 13.750"Bolt Circle To Bolt Circle: 11.50Mount: 6 Pads, 10mm x 1.5Hub: Milled Flats, 2.050" Hub HeightPilot: Diameter 1.703"Splines: 35Stall: 1600-1800Codes: 24202989, 24210827, 24010828,...

4L80E Automatic Transmission Torque Converter, Lock Up Diameter: 13.750" Bolt Circle To Bolt Circle: 11.50 Mount: 6Pads, 10mm x 1.5 Hub: Milled Flats, 2.650" Hub Height Pilot: Diameter 1.703" Splines: 35 Stall: 1600-1800 Codes: 24202989,...

4L80E Automatic Transmission Torque Converter, Lock UpDiameter: 13.750"Bolt Circle To Bolt Circle: 11.50Mount: 6 Pads, 10mm x 1.5Hub: Milled Flats, 2.050 Hub HeightPilot: Diameter 1.703"Splines: 35Stall: 2200-2400Codes: 12491334, 17803871, 24210825,...

4L80E Automatic Transmission Torque Converter, Lock Up. Diameter: 13.750" Bolt Circle To Bolt Circle: 11.50 Mount: 6 Pads, 10mm x 1.5 Hub: Milled Flats, 2.050" Hub Height Pilot: Diameter 1.703" Splines: 35 Stall:...

4L80E Torque Converter, Lock Up, Codes 1SB1, 193, 366, 526, 604, 19B1; 2.05" Hub Height / Dia 13.75" / Bolt Circle 11.5" / Pads 6 / Input Splines 35 / High Stall / GM-75HS / 1990-Up

4L60E, 4L65E Automatic Transmission Lock-Up Torque Converter Diameter: 13.750" Bolt Circle To Bolt Circle: 11.50" Mount: 6 Pads; 10mm x 1.5 Hub: Slotted Pilot: Diameter 1.703" Splines: 35 Stall: 1600-1800 Codes: 1SA0, 1SA1, 194, 492, 24202989,...
